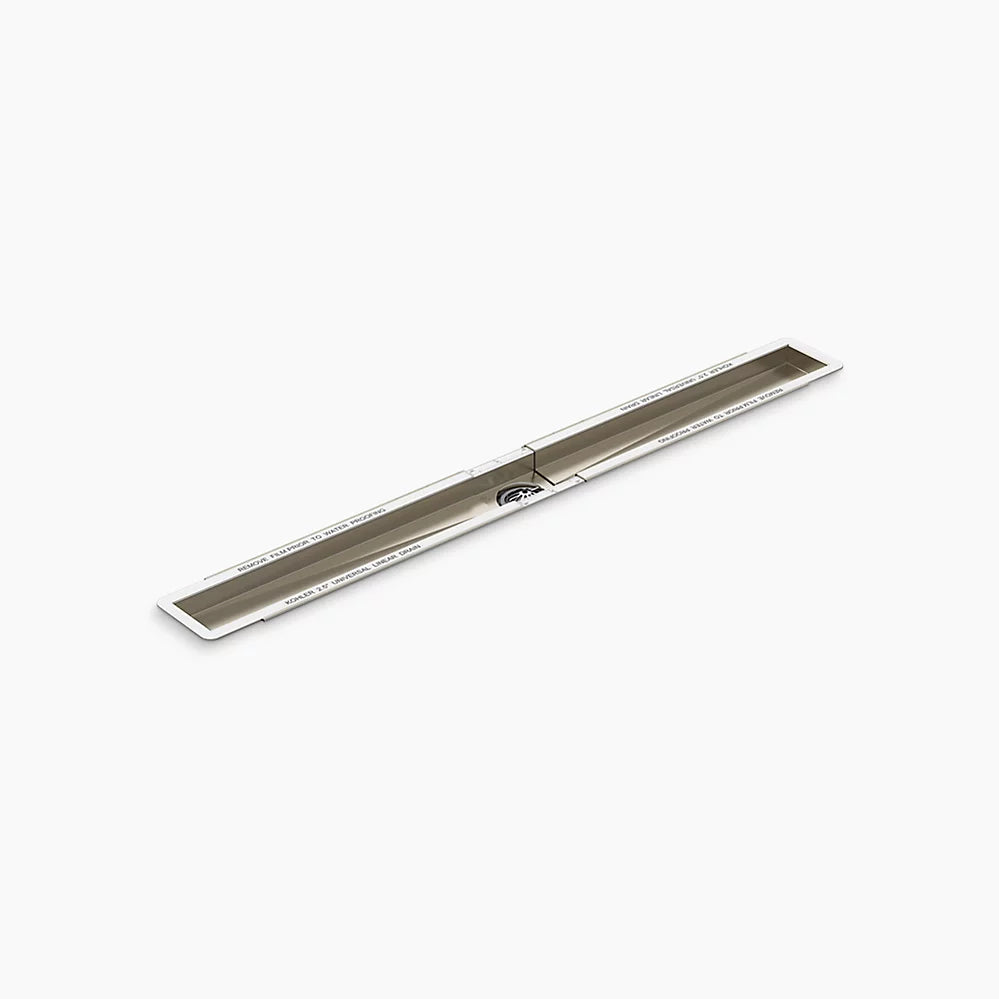

Kohler | 2½″ x 36–60″ Adjustable Linear Shower Drain Chassis Stainless Steel & Brass

Kohler | 2½″ x 36–60″ Adjustable Linear Shower Drain Chassis Stainless Steel & Brass

• Model No.: K-80646-NA
• Flush-to-wall design (recommended) provides a clean aesthetic; can also be installed within shower floor interior
• Extend channel length from 36" to 60" for easier specification and precise wall-to-wall installation (if desired)
• Channel is pitched to outlet for easy cleaning and complete drainage; handles up to 15 gpm (56.8 lpm) flow capacity (rate may vary by installation)
• Drain outlet location can be adjusted to bypass joints, venting, or other in-floor obstacles
• Outlet adapter can be preattached to drain pipe for simplified installation and access to couplings
• Easy-clean domed hair strainer prevents clogs
• Subfloor brackets are height-adjustable to ensure the drain channel is mounted at the correct height during installation
• Removable tile guide/mud guard keeps channel clean of debris during installation and provides a straight edge to tile against
• Wide-top flange with protective film ensures excellent waterproof adhesion
• Includes subfloor mounting brackets, tile guide/mud guard, hair strainer, and threaded collar, along with straight pipe and threaded outlet adapters
• Can also be installed with KOHLER side-outlet adapter K-28987 (sold separately)
• Requires Kohler 2-1/2" x 36", 2-1/2" x 48", or 2-1/2" x 60" linear drain grate
  Material
• Solid stainless steel and brass construction
• KOHLER finishes resist corrosion and tarnishing
  Installation
• Through-the-floor, installed with tile
