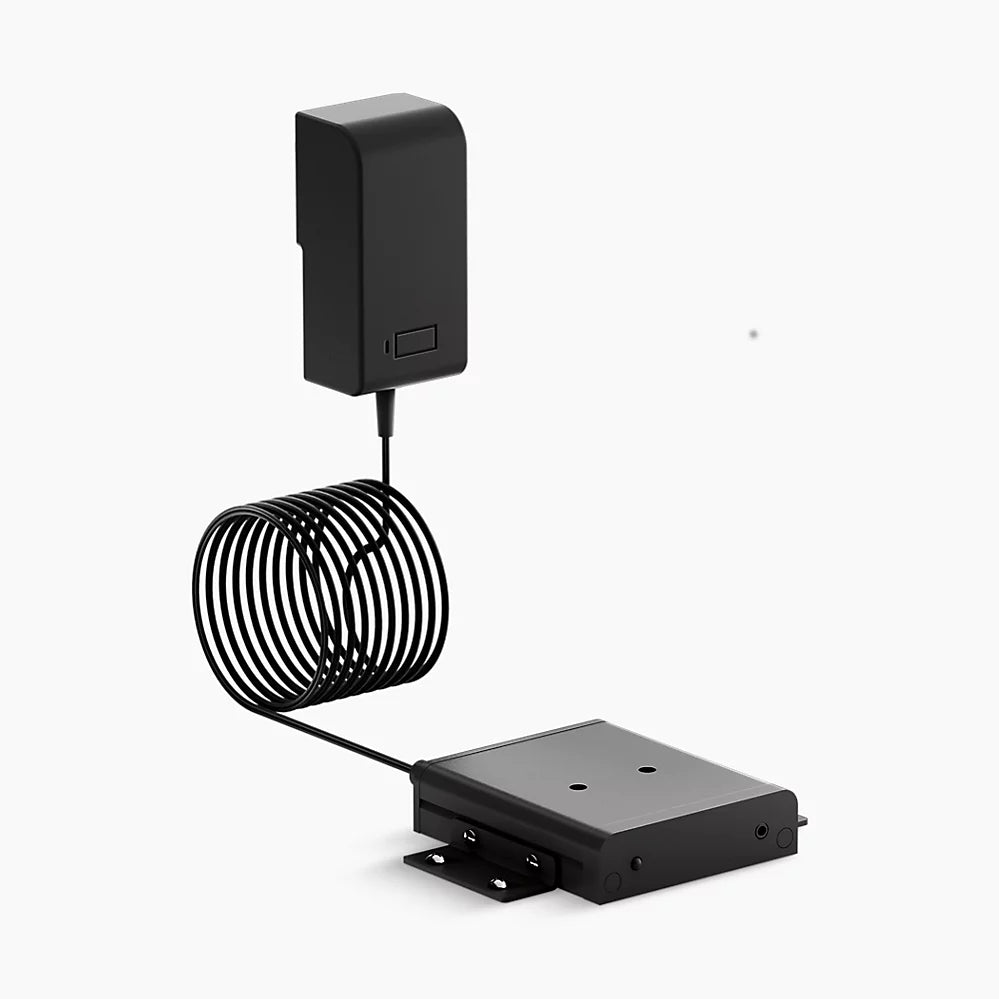

Kohler | DTV+ Amplifier

Kohler | DTV+ Amplifier

• Model No.: K-99696-NA
• Premium material construction
• Size: 5-5/8" W x 4-1/4" H x 3-5/8" D (143 mm x 108 mm x 92 mm)
• Thickness: 1-3/16" (30 mm)
• Audio amplifier with Bluetooth wireless connectivity for streaming audio
• Connects with up to four SoundTile water-resistant speakers (or any standard 4- or 8-ohm speakers)
• Bluetooth range: 33 ft (10.1 m)
• Bluetooth version: 3.0
• Output power: 20 Watts x 1 into 4 Ohms
• Minimum impedance: 4 Ohms
• Electrical rating: 120/240 V, 1.2 A, 50/60 Hz
• Two 1/7" (3.5 mm) input jacks for wired audio input
• One 1/7" (3.5 mm) line out jack
• Screw terminal block for two to four speakers
• One port for connection to DTV+ System Controller
• Maximum ambient temperature: 104°F (40°C)
• Maximum relative humidity non-condensing: 90%
• Can be used with DTV+ digital system or as standalone Bluetooth-enabled amplifier
• Includes mounting bracket and screws for wall installation or rubber feet for countertop/shelf placement
