Kohler | Universal Rite‑Temp Pressure‑Balancing Valve Kit w/ Service Stops & PEX Inlets

Kohler | Universal Rite‑Temp Pressure‑Balancing Valve Kit w/ Service Stops & PEX Inlets

• Model No.: K-8304-PS-NA

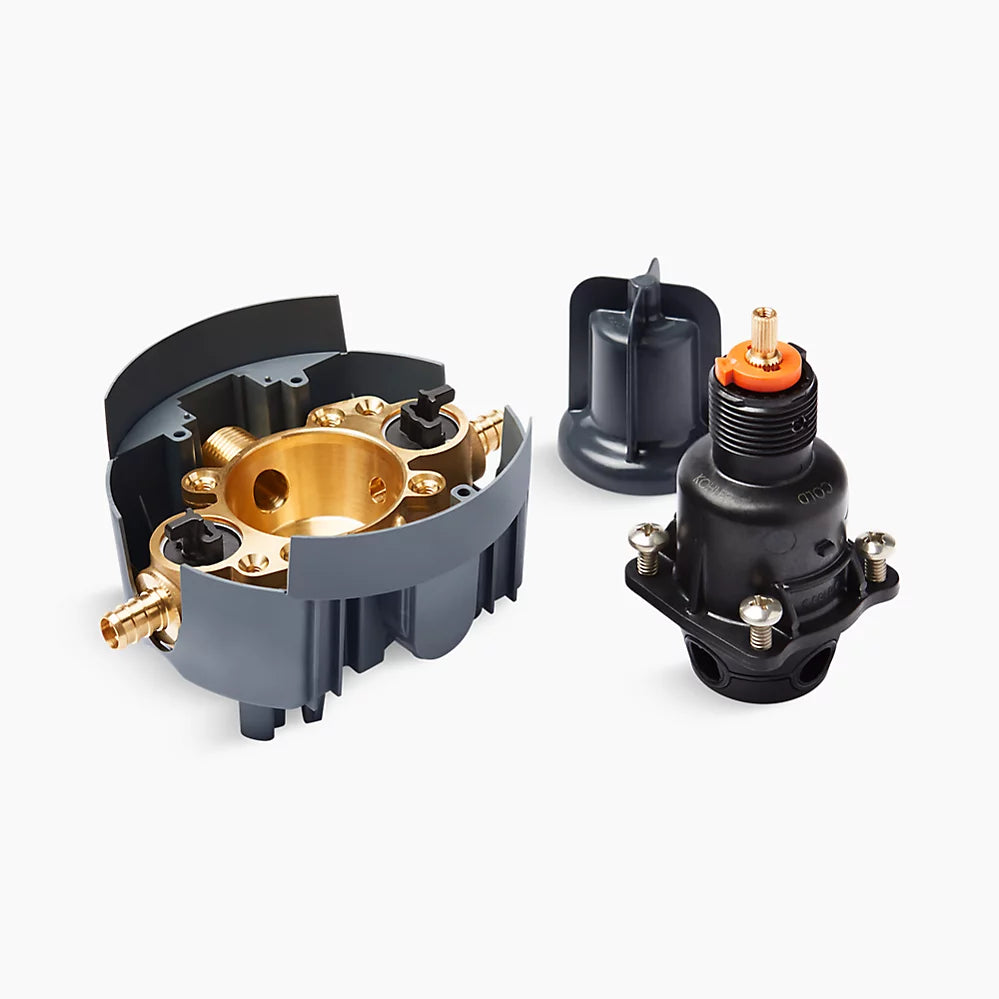

• Includes valve body, pressure balance cartridge, rough-in guide, and mudguard
• 1/2" PEX Crimp (F1807 style) inlets, with stops
• 1/2" Universal NPT & direct sweat outlets
• Service stops include integral check valves
• 5.0 gpm (18.9 lpm) maximum flow rate at 45 psi (3.1 bar)
• Single lever design cycles from off through cold to hot
• Antiscald protection
• One-piece cartridge design simplifies installation and maintenance
• Adjustable high-temperature limit stop to control maximum water temperature
• Requires valve trim to complete installation (sold separately)
• Pressure-balancing diaphragm technology maintains outlet temperature within +/-3°F during water pressure fluctuations
  Material
• Forged dezincification-resistant brass body provides long term reliability and resistance to aggressive water conditions
  Installation
• Designed for use in standard, back-to-back, and thin wall installations
• Valve body features integral mounting locations and symmetrical valve inlets to simplify installation
• Cartridge is reversible for installations where hot and cold supplies are reversed
• Rough-in guide designed for both standard and thin wall installations
• Installed valve rough-in can be flushed and pressure-tested to 150 psi max (air or water) without cartridge by using test cap (sold separately)
