Loewen | 7ft x 12ft Sliding French Patio Doors OXXO, Alum Clad Ext, Fir Interior

Loewen | 7'x12' Sliding French Patio Doors OXXO, Aluminum Clad Exterior, Doug Fir Interior
Dimension Details:

• Callout Code: 3670
• Jamb: 4-9/16" (116mm)
  Finish:
• Frame: Midnight Bronze Clad (Std)
• Sash: Sash Color Matches Frame Color
• Int Frame: Natural Wood
• Int Sash/Panel: Matches Frame
  Unit Opteration/Type:

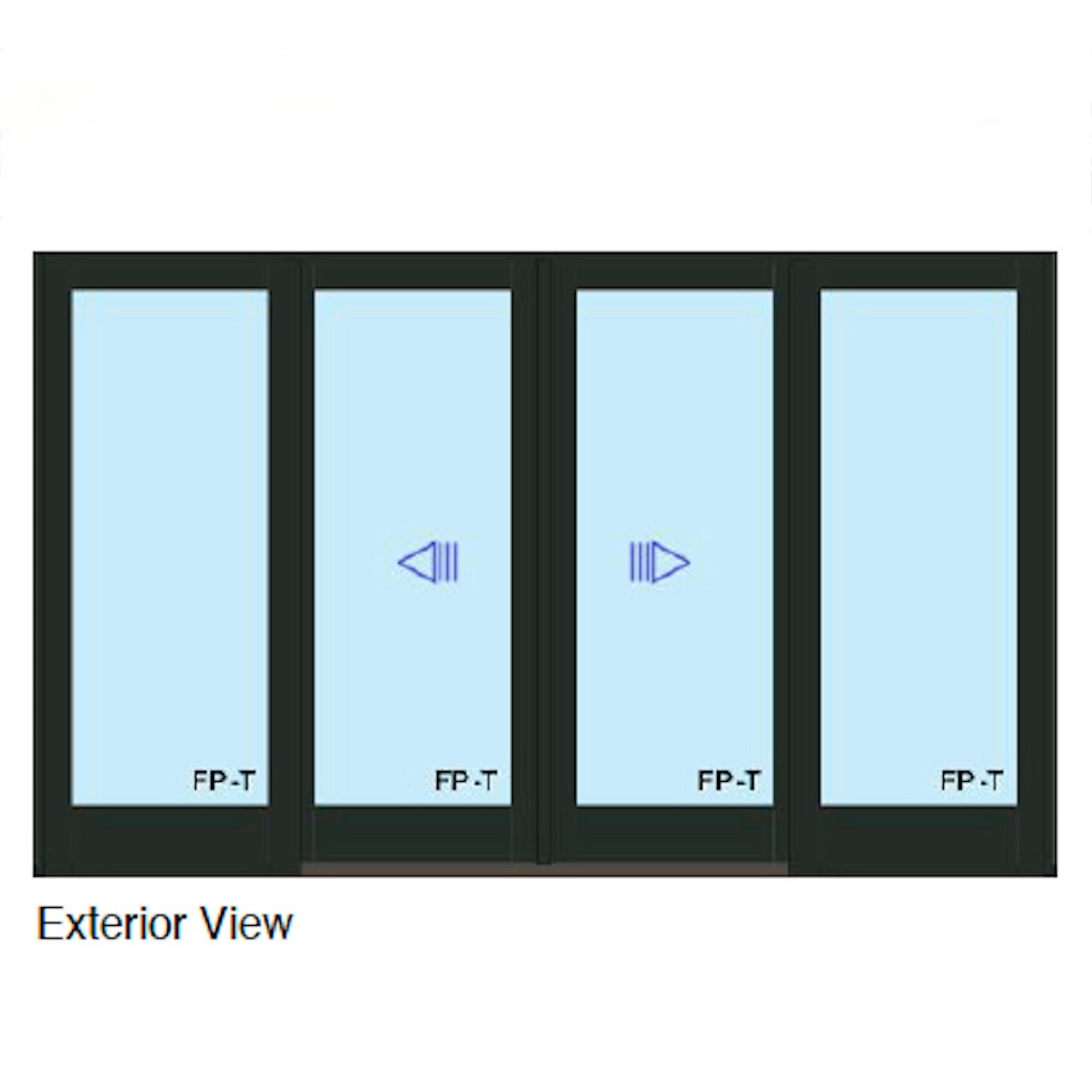

• OXXO
• 4-5/16" (110mm) Wide Stile
• 7-7/8" (200mm) Bottom Rail
  Glazing Options:
• Double 366-Clear
• All Panes Tempered
• 3 MM Glass Thickness
• Black Stainless Steel Spacer
• Black Bar(63) 1/2" (13mm)
• Preserve Film on INT & EXT
• Interior Profiled Glazing Stops
  Hardware Options:
• Truth 2 point Hdwr
• Truth Flush Handle
• Hardware Color: PVD Bronze
• Key - Thumb Cylinder
• C/W 2 Security Foot Locks
• Bronze Footlock
  Door Sill Options:
• Bronze Anodized Aluminum Sill
  Attachment Options:
• Field Installed Dripflash
• Nailing Flange: Head, Left, Right
  Screen:
• Sliding Screen
• Screen Color Matches Frame Color
• Less Visible Screen (High Trans)
  Miscellaneous:
• Cubes: 54
• N
  Performance Data:
• Not Impact Certified
• U-Value Imperial (USA): 0.27
• U-Value Metric (CDN) USI: 1.53
• Solar Heat Gain Coefficient: 0.18
• Visible Transmittance: 0.41
• CPD Number: LOW-N-74 09096-00001
• Performance Grade: SD-C45
  *This French Patio Door System is brand new and still in the distributor's warehouse in Chico, CA. Available for Local Pick-Up and regional delivery.*
