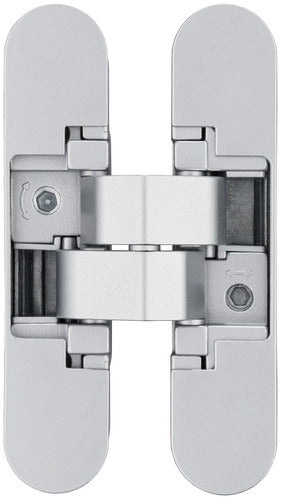

Simonswerk | Anselmi AN 170 3D Concealed Hinge 110 mm

Simonswerk | Anselmi AN 170 3D Concealed Hinge 110 mm

• Model No.: AN1703D
• Material: Suitable for timber door leaf
• Finishes: Available in multiple finishes including Rustic Umber, Satin Chrome, Light Bronze, Black, Antique Bronze, Aluminium Chrome, Polished Brass, Polished Chrome, Satin Nickel, RAL 9016 Traffic White, Anthracite, Medium Bronze, and Copper
• Overall Length: 110.0 mm
• Width (door part): 24.0 mm
• Width (frame part): 24.0 mm
• Cutter Diameter: 16.0 mm
• Collar Ring Diameter: 27.0 mm
• Opening Angle: 180°
• Load Capacity: 60.0 kg
• Application: For unrebated residential doors with 21 mm reduced hinge frame part
• Compatibility: Suitable for aluminum frame, blind frame, block frame, casing frame
• DIN: Right and left hand
• Packing Unit: Pack of 2
• 29 sets of hinges available
  **Minimum order of 3 is required, price reflects 3 sets of hinges
