Weather Shield

Weather Shield | Premium Series Multi-Slide 4 Panel Patio Door System Pine Brnz

Weather Shield | Premium Series Multi-Slide 4 Panel Patio Door System Pine Brnz

Regular price $9,888.00
Regular price $15,374.00 Sale price $9,888.00
Sale Sold out
Order / Inquire

Weather Shield | Premium Series Multi-Slide Patio 4 Panel Rectangle Complete Unit Door System, White Aluminum Clad Exterior, Unfinished Pine Interior.
-Frame Style Multi-Slide - 1-3/4 inch Thick Panel-Single Direction Stacked Frame
No Automation
See weathershield.com for PG/DP information
Sizing Method Rough Opening
--Panel Size 38-7/8 inch x 76-7/8 inch
--RO Size 144 inch x 80 inch
--Jamb Size 143 inch x 79-1/2 inch
--Glass Size 29-1/16 inch x 65-1/4 inch
Operating Code-OXXX
Aluminum Clad--White00AAMA 2605
--Exterior Panel/Sash Color White
--7-1/2 inch Bottom Rail - 5 inch Top Rail - Standard Sill Dark Bronze Anodized
--W/Frame Nailing Fin
11-3/8 inch Jamb Depth -
Pine-
--No Interior Saw Kerf
--No Inside Sill Stop
Zo-E Shield 5 Extreme
--W/Out Neat Clean Glass
--Glazing Bead Profile - Colonial - Back Side of Glazing Bead Painted
Flat Black
--W/Protective Film
--Tempered Glass
--Silver Spacer
--W/Inert Airspace Gas
No Center Rail
1 Lite -
Oil Rubbed Bronze PVD -2 Point Lock System - Flush Handleset
--Keyed Random
--W/Standard Tandem Rollers
No Screen -
KD
W/California Warning Label
Ratings: CPD Product Number WEA-N-311-00211-00001 U-Factor 0.32 Solar Heat Gain Coefficient (SHGC) 0.18 Visible Transmittance (VT) 0.39

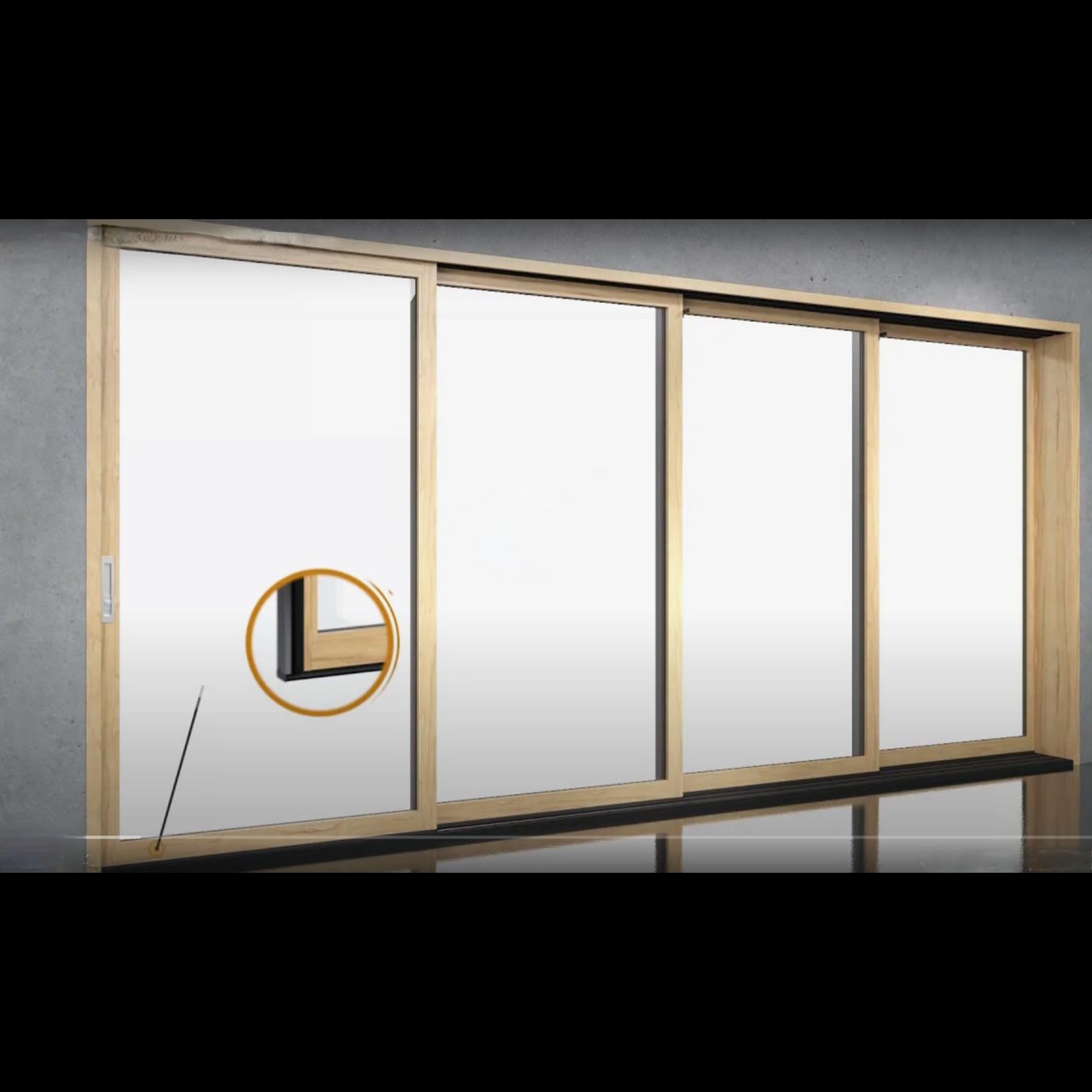

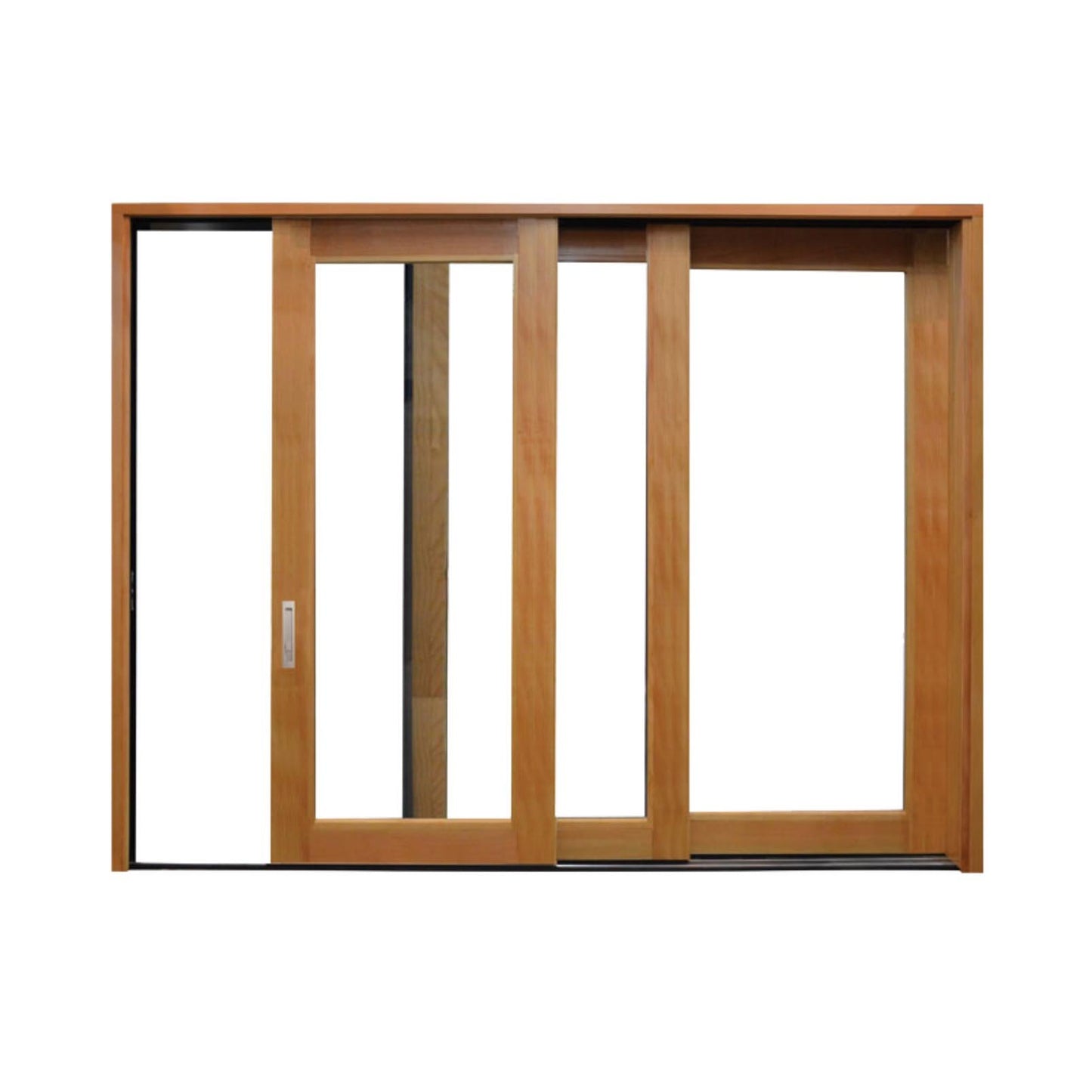

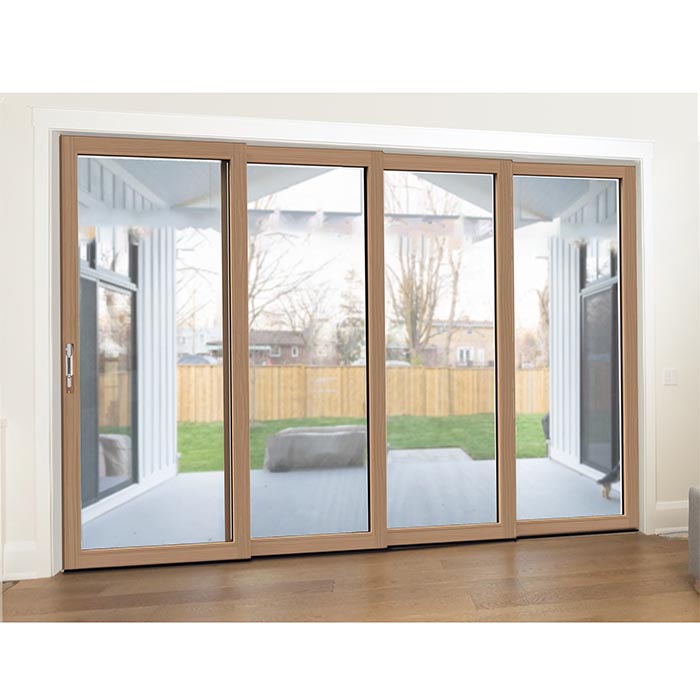

*Product photos are not of actual door system, but of similar systems from the Premium Series Multi-Slide line*

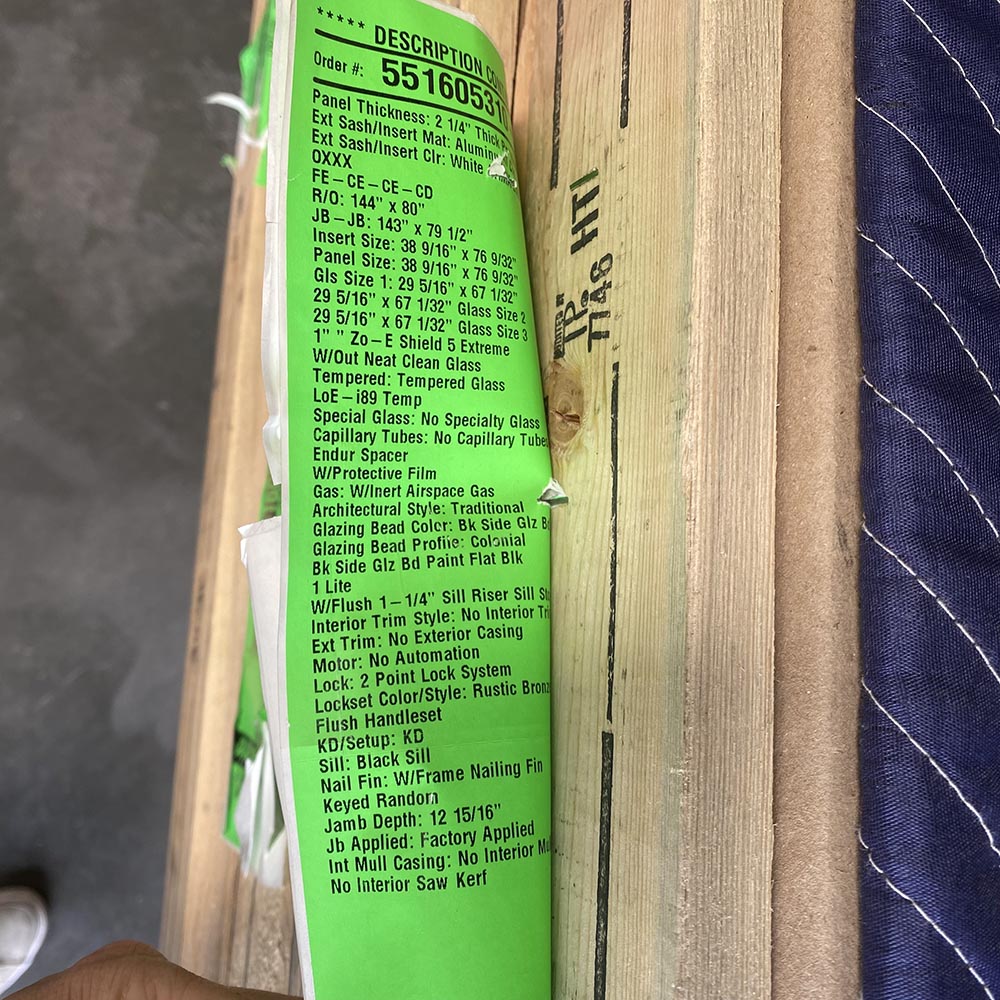

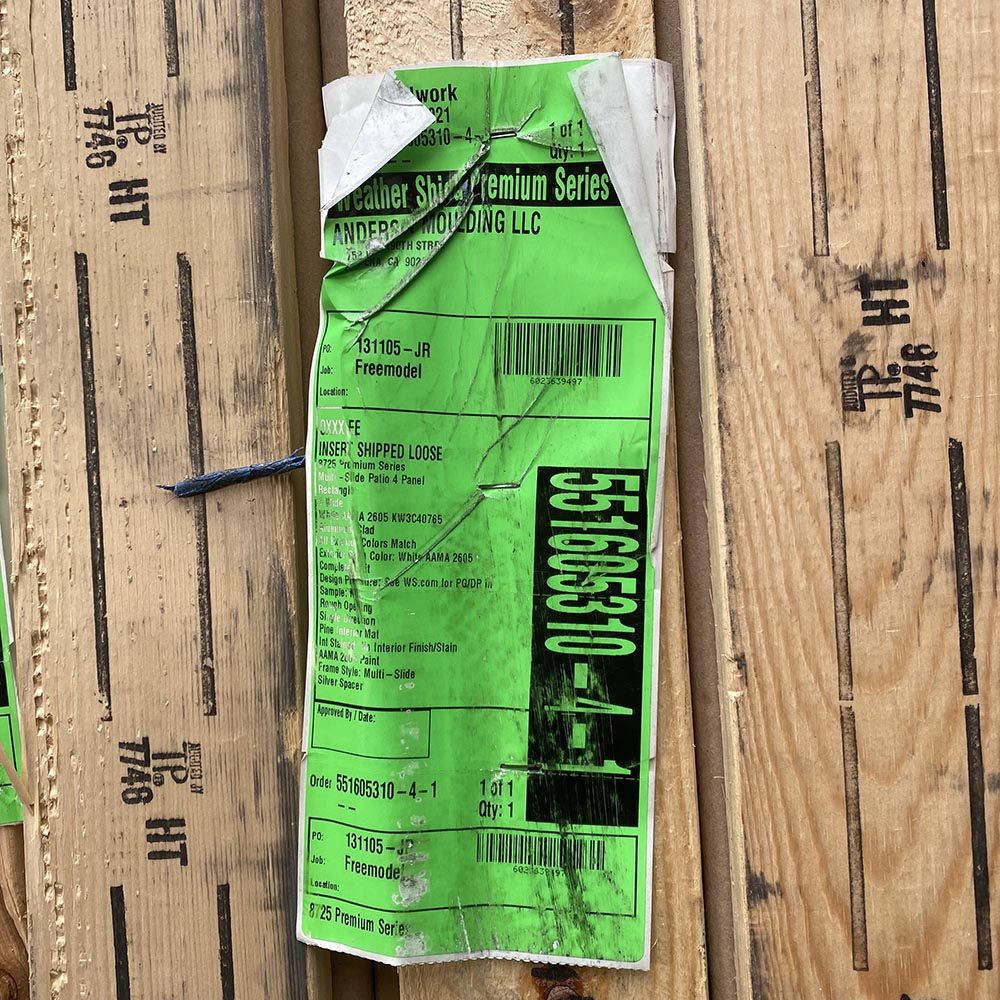

*Door system ordered by custom builder for a project and never used. Doors are in original, unopened boxes.*
