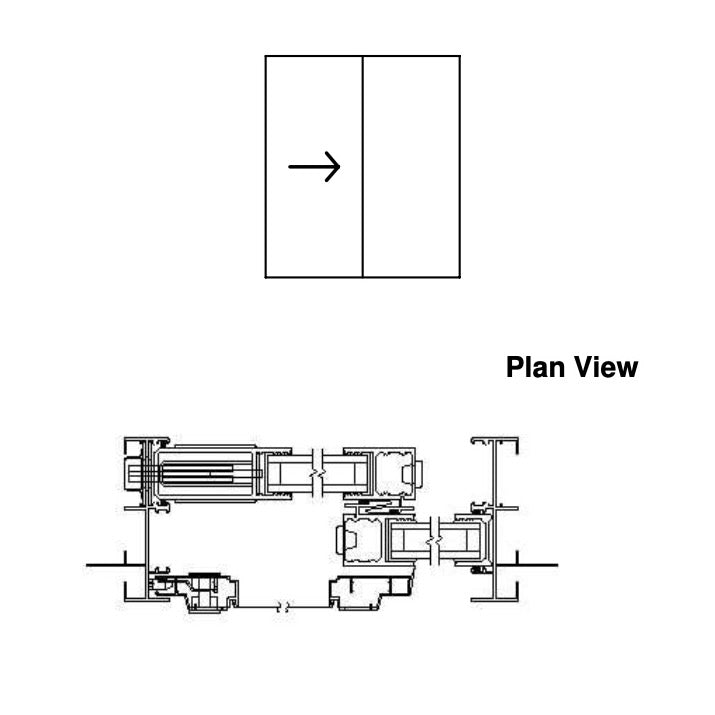

Fleetwood | Series 3000 XO Sliding Doors, Black Anodized

Fleetwood | Series 3000 XO Sliding Doors

• NFW=71.5" x NFH=81.5"
• Finish: Class I, Black, Anodized
• Hardware: Black Painted Stainless Steel
• Glass: 1": Clear Cardinal 366 6mm-T,0.5argon,Clear 6mm-T (Glazed)

CLR5BE4C366T

• Frame type: Nail-On (Field Assembled)
• Boxing: None (Wrapped)
• Screens: Standard Mesh (Ultra Vue), w/Magnet
• Actuator Archetype Narrow
• Actuator Height 46"(Not Pool Code)-

nominal from bottom of sill

• Cylinders None
• Electronic_Magnet None
• Fixed Stile Narrow 3008(non-flush stack)-std
• Handle Archetype Narrow
• Interlockers Standard
• Jobsite Sill Protector No
• LockStile Standard
• MtgStiles Standard
• Screen_Handle_Height 48in. c/l
• Sill Low Profile Sill 1.25in
• SillPan No
• Structural_Rating To meet a minimum 116 MPH(Vult) wind speed

Top Rail Standard (narrow)

• Water_Rating Performance varies
• Weight/lb: 345.88
• Cube/ft: 30.78

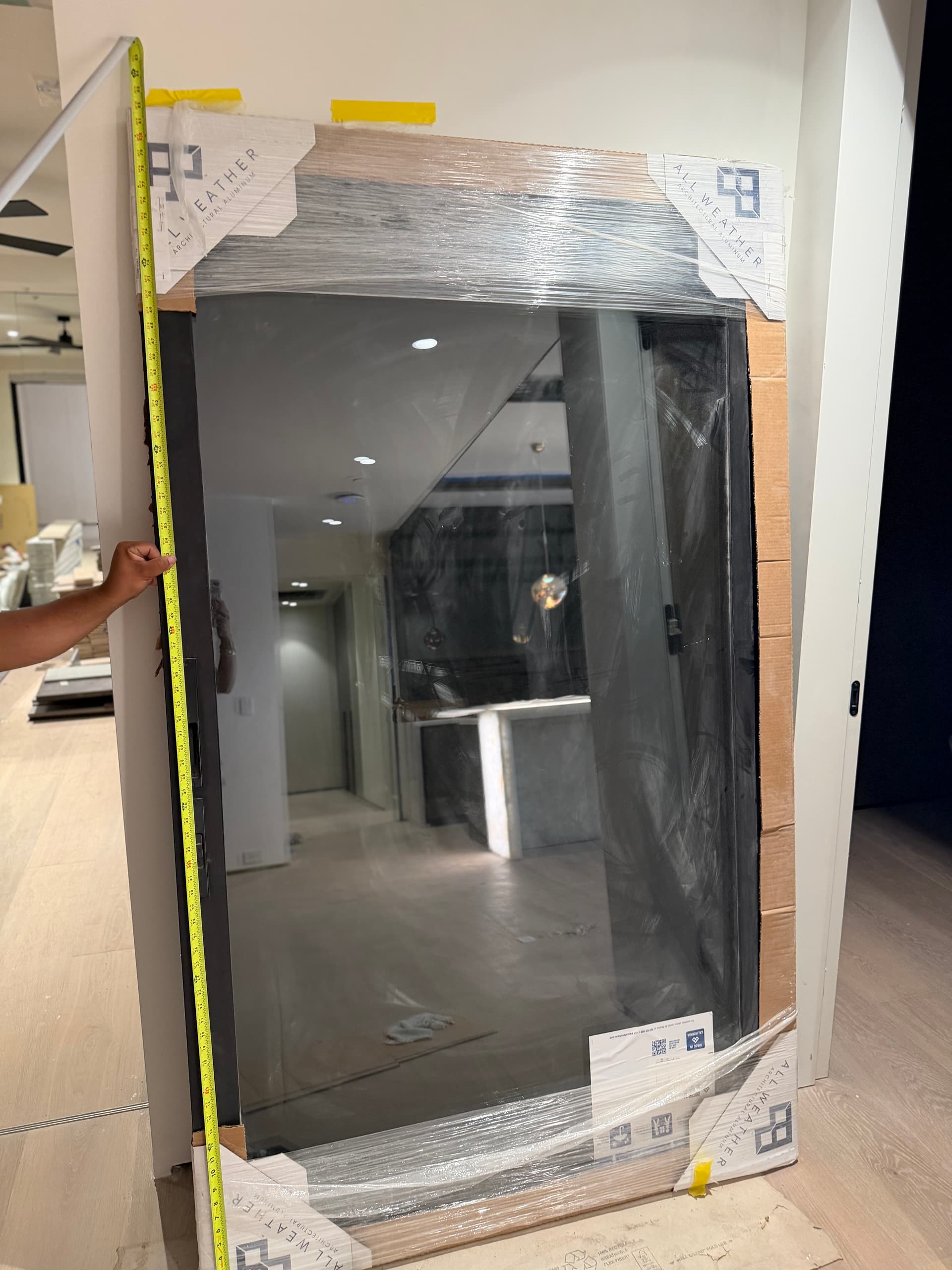

*These doors were ordered for a project in July, 2024, and never used. They are available for local pick up in Los Angeles.*
